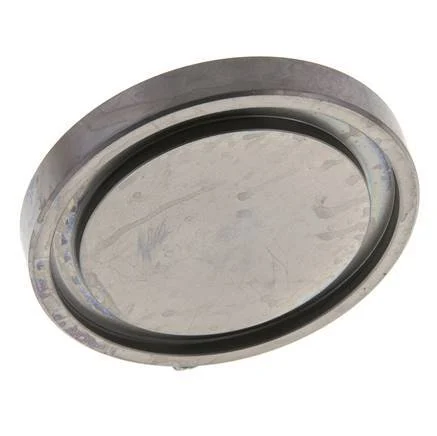

1-1/2” SAE Blind Plate 3000 PSI Steel ISO 6162

This is an SAE blind plate for SAE fittings with a flange diameter of 60.3 mm. It is suitable for SAE hole patterns of 1-1/2 inch. The body is made of zinc plated steel. The maximum pressure is 200 bar (2900 psi). It is made in accordance to ISO 6162.

Note: The operation pressure depending on the strength of the screws.

Pros:

• Adheres to ISO 6162
• Suitable for hydraulic applications

Specifications

Flange diameter (mm) : 60.3
SAE – hole pattern : 1-1/2 inch – SAE (3000 PSI)
Material : Steel
Max pressure at 20 °C (bar) : 200
Standard : ISO 6162
Material connection 1 : Steel
Surface protection connection 1 : Galvanic zink plated
With drain : No
