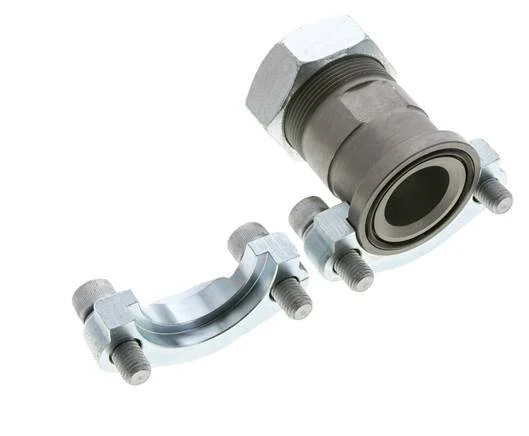

1-1/2” SAE Flange 3000 PSI Steel with 42L (M52x2) ISO 6162-1

This is an SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1-1/2 inch. Connection 2 is a 42 mm cutting ring with an M52x2 union nut. It has a flange diameter of 60.3 mm. The body is made of zinc plated steel with an NBR seal. The maximum pressure is 160 bar (2320 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

Pros:

• Adheres to ISO 6162-1
• Suitable for hydraulic applications

Specifications

Flange diameter (mm) : 60.3
Union nut thread : M52 x 2
SAE – hole pattern : 1-1/2 inch – SAE (3000 PSI)
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 42
Connection type : Cutting ring,Flange
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -30
Max temperature (°C) : 90
Standard : ISO 6162-1
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
