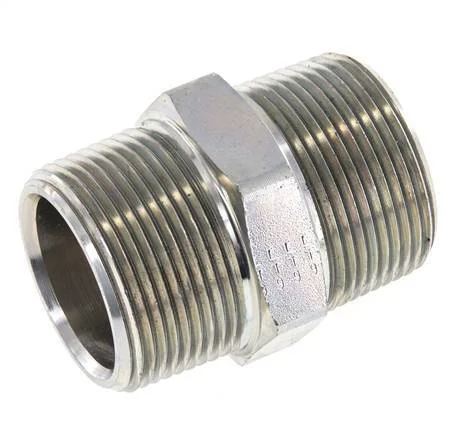

1 1/4” NPT Zinc plated Steel Double Nipple 80 Bar – Hydraulic

This double nipple is designed with male to male threads. Connection 1 has male NPT 1 1/4 inch threads. Connection 2 has male NPT 1 1/4 inch threads. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 80 bar (1160 psi). It has a 46 mm nut to be tightened with a wrench.

FL2S-M series

The FL2S-M series are straight double nipples with two male connection points. Thread standards of NPT, R, G, and metric are available in a wide range. They are a 1-part design made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : 1 1/4 inch
Thread (smaller) : 1 1/4 inch
Connection type : Outer thread conical (NPT)
Material : Steel
Max pressure at 20 °C (bar) : 80
Fitting features : Hydraulic
Model : 1-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Wrench width (mm) : 46
