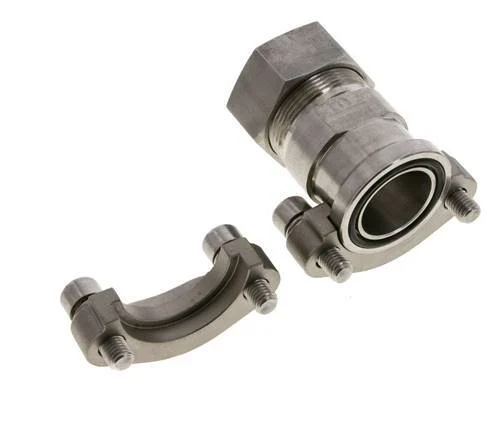

1-1/4” SAE Flange 3000 PSI Stainless Steel with 35L (M45x2) ISO 6162-1

This is an SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1-1/4 inch. Connection 2 is a 35 mm cutting ring with an M45x2 union nut. It has a flange diameter of 50.8 mm. The body is made of stainless steel with an NBR seal. The maximum pressure is 160 bar (2320 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

Pros:

• Adheres to ISO 6162-1
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Flange diameter (mm) : 50.8
Union nut thread : M45 x 2
SAE – hole pattern : 1-1/4 inch – SAE (3000 PSI)
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 35
Connection type : Cutting ring,Flange
Material : Stainless steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -30
Max temperature (°C) : 90
Standard : ISO 6162-1
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
With drain : No
