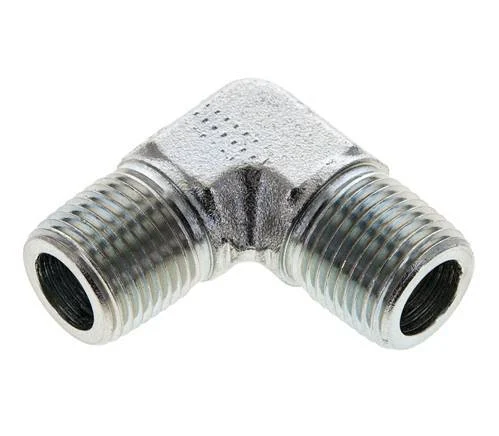

1/2” NPT Male Zinc plated Steel 90 deg Elbow Fitting 225 Bar – Hydraulic

This elbow fitting is designed with female threads. Connection 1 has male NPT 1/2 inch threads. Connection 2 has male NPT 1/2 inch threads. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 225 bar (3263 psi). The input and the output are at a 90° angle.

FL2E-M series

The FL2E-M series are elbow fittings with two male connection points at a 90 degree bend. They are made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : 1/2 inch
Thread (smaller) : 1/2 inch
Connection type : Outer thread conical (NPT)
Material : Steel
Max pressure at 20 °C (bar) : 225
Fitting features : Hydraulic
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
