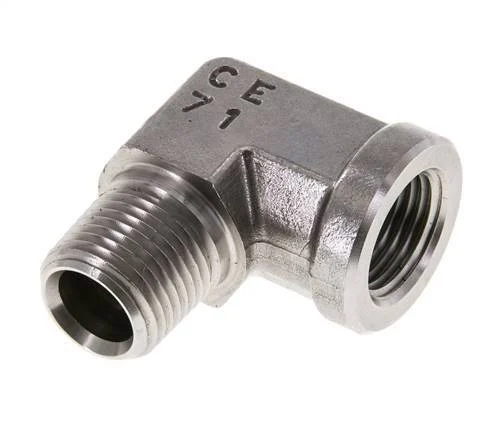

1/2” NPT x 1/2” NPT M/F Stainless steel 90 deg Elbow Fitting 210 Bar – Hydraulic

This screw-in elbow is designed with one male and one female threaded connection. Connection 1 has male NPT 1/2 inch threads. Connection 2 has female NPT 1/2 inch threads. It is an elbow fitting. It is made out of stainless steel (1.4401). At 20 °C (68 °F), it can handle a maximum pressure of 210 bar (3046 psi). The input and the output are at a 90° angle.

FL2E-FM series

The FL2E-FM series are elbow fittings with one port having male threads and the second having female threads. Bend angle of 45 or 90 degrees with some having a 60 degree conical inside the male threads. Brass, cast iron, steel, or stainless steel options.

Specifications

Thread : 1/2 inch
Thread (smaller) : 1/2 inch
Connection type : Outer thread conical (NPT),Inner thread conical (NPT)
Material : Stainless steel
Max pressure at 20 °C (bar) : 210
Fitting features : Hydraulic
Quality of material : Stainless steel 316 (1.4401)
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4401)
Material quality connection 2 : Stainless steel 316 (1.4401)
Shape : Elbow
