1/2” SAE Blind Plate 6000 PSI Steel ISO 6162 [2 Pieces]

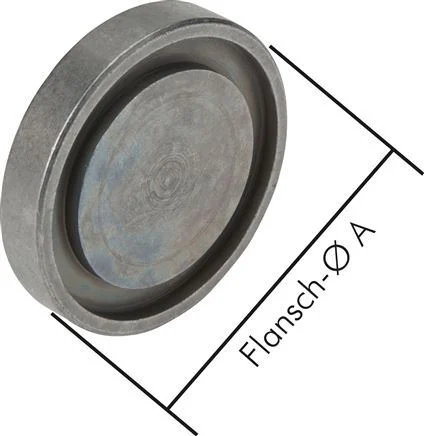

This is an SAE blind plate for SAE fittings with a flange diameter of 31.7 mm. It is suitable for SAE hole patterns of 1/2 inch. The body is made of zinc plated steel. The maximum pressure is 400 bar (5800 psi). It is made in accordance to ISO 6162.

Note: The operation pressure depending on the strength of the screws.

Pros:

• Adheres to ISO 6162
• Suitable for hydraulic applications

Specifications

Flange diameter (mm) : 31.7
SAE – hole pattern : 1/2 inch – SAE (6000 PSI)
Material : Steel
Max pressure at 20 °C (bar) : 400
Standard : ISO 6162
Material connection 1 : Steel
Surface protection connection 1 : Galvanic zink plated
With drain : No
