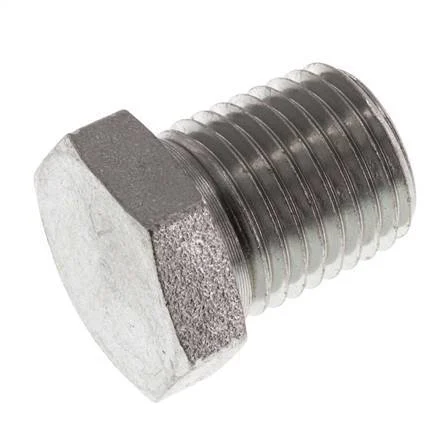

1/4” NPT Male Zinc plated Steel Closing plug with Outer Hex 275 Bar [2 Pieces]

This end cap is designed with male threaded connections. Connection 1 has male NPT 1/4 inch threads. It also has an outer hexagon for tightening/loosening. It is an end cap, so it has no output port. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 275 bar (3989 psi).

FL1-M series

The FL1-M series consists of fittings with 1 connection port, so they are end caps. G, R, NPT, and metric (standard and conical) threads with a size range of 1/8 inch to 2 inches (metric range from 5 to 14 mm). Designed with either an external hex (to be used with a wrench for example) or an inner hex for an allen wrench. Material options of brass, steel, or stainless steel. They are designed to stop the media flow.

Specifications

Thread : 1/4 inch
Connection type : Outer thread conical (NPT)
Fitting features : Capped
Material : Steel
Max pressure at 20 °C (bar) : 275
Material connection 1 : Steel
Surface protection connection 1 : Galvanic/electrolytic zinc plated
With drain : No
