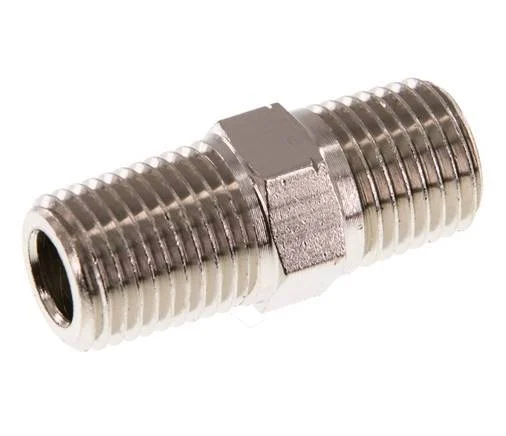

1/4” NPT x R 1/4” Nickel plated Brass Double Nipple 60 Bar

This double nipple is designed with male to male threads. Connection 1 has male NPT 1/4 inch threads. Connection 2 has R 1/4 inch threads. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 60 bar (870 psi). It has a 14 mm nut to be tightened with a wrench.

FL2S-M series

The FL2S-M series are straight double nipples with two male connection points. Thread standards of NPT, R, G, and metric are available in a wide range. They are a 1-part design made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : 1/4 inch
Thread (smaller) : 1/4 inch
Connection type : Outer thread conical (NPT),Outer thread conical BSPT-R
Material : Brass
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 60
Model : 1-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
With drain : No
Wrench width (mm) : 14
