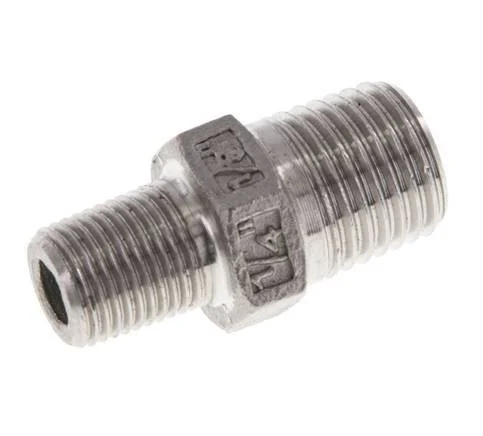

1/8” NPT x 1/4” NPT Stainless steel Double Nipple 16 Bar [2 Pieces]

This double nipple is designed with male to male threads. Connection 1 has male NPT 1/8 inch threads. Connection 2 has male NPT 1/4 inch threads. It is a straight fitting. It is made out of stainless steel (1.4408). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL2S-M series

The FL2S-M series are straight double nipples with two male connection points. Thread standards of NPT, R, G, and metric are available in a wide range. They are a 1-part design made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : 1/4 inch
Thread (smaller) : 1/8 inch
Connection type : Outer thread conical (NPT)
Material : Stainless steel
Max pressure at 20 °C (bar) : 16
Fitting features : Reducing
Quality of material : Stainless steel 316 (1.4408)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
Material quality connection 2 : Stainless steel 316 (1.4408)
Shape : Straight
