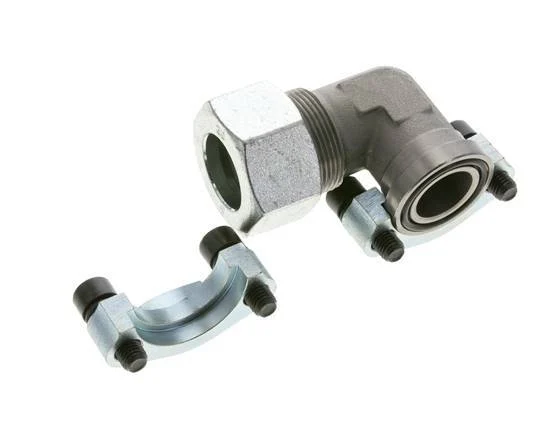

1” Elbow SAE Flange 3000 PSI Steel with 30S (M42x2) ISO 6162-1

This is an elbow SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1 inch. Connection 2 is a 30 mm cutting ring with an M42x2 union nut. It has a flange diameter of 44.5 mm. The body is made of zinc plated steel with an NBR seal. The maximum pressure is 320 bar (4640 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

Pros:

• Adheres to ISO 6162-1
• Suitable for hydraulic applications

Specifications

Flange diameter (mm) : 44.5
Union nut thread : M42 x 2
SAE – hole pattern : 1 inch – SAE (3000 PSI)
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 30
Connection type : Cutting ring,Flange
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 320
Min temperature (°C) : -30
Max temperature (°C) : 90
Standard : ISO 6162-1
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
