1” NPT Stainless steel Double Nipple 140 Bar – Hydraulic

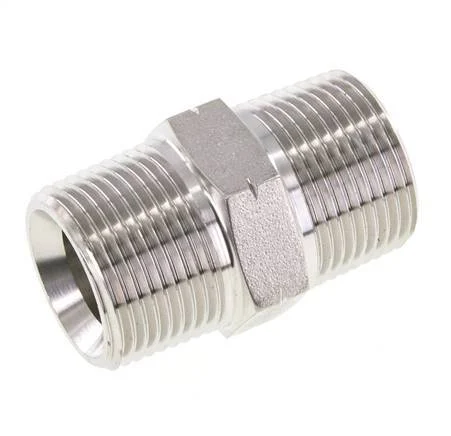

This double nipple is designed with male to male threads. Connection 1 has male NPT 1 inch threads. Connection 2 has male NPT 1 inch threads. It is a straight fitting. It is made out of stainless steel (1.4571). At 20 °C (68 °F), it can handle a maximum pressure of 140 bar (2031 psi). It has a 36 mm nut to be tightened with a wrench.

FL2S-M series

The FL2S-M series are straight double nipples with two male connection points. Thread standards of NPT, R, G, and metric are available in a wide range. They are a 1-part design made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : 1 inch
Thread (smaller) : 1 inch
Connection type : Outer thread conical (NPT)
Material : Stainless steel
Max pressure at 20 °C (bar) : 140
Fitting features : Hydraulic
Quality of material : Stainless steel 321 (1.4541)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
Wrench width (mm) : 36
