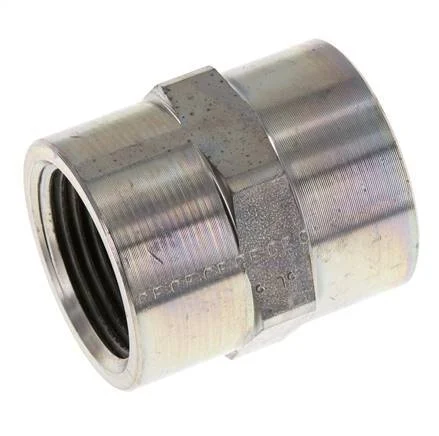

1” NPT Zinc plated Steel Socket 140 Bar – Hydraulic

This sleeve (reducing socket) is designed with reducing NPT threads (round body). Connection 1 has female NPT 1 inch threads. Connection 2 has female NPT 1 inch threads. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 140 bar (2031 psi).

FL2S-F series

The FL2S-F series are straight sleeves designed either as reduces or weldable for female threads. They are made out of brass, cast iron, steel, sainless steel, or aluminum.

Specifications

Thread : 1 inch
Thread (smaller) : 1 inch
Connection type : Inner thread conical (NPT)
Material : Steel
Max pressure at 20 °C (bar) : 140
Fitting features : Hydraulic
Model : 1-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
