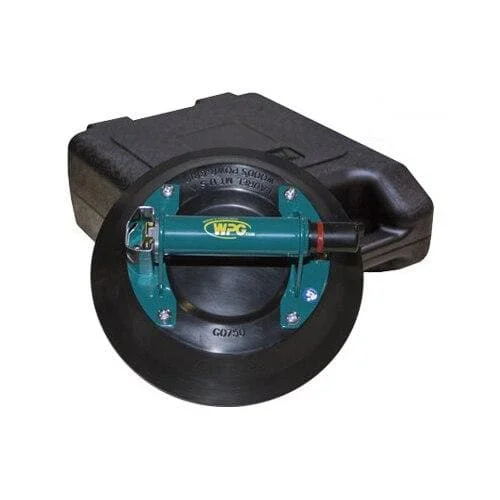

10″ Hybrid Hand Cup For Flat Or Curved Surfaces
This hybrid cup features a metal handle with an industrial-grade plastic plunger that’s economical to replace. The flexible vacuum pad ensures easy attachment on smooth, nonporous surfaces, whether flat or curved, and has a 175 lbs [79 kg] lifting capacity.
Features:
- Fast attach and release
- Red-line indicator warns user of any significant vacuum loss
- Supplied with protective carrying case
Instructions
Troubleshooting
Specifications
More Suction Cups
| Model | N6300 |
|---|---|
| SKU | 91640 |
| Load Capacity | 175 lbs [79 kg] |
| Surface Texture | Smooth |
| Material Porosity | Nonporous |
| Allowable Surface Curvature | Flat to Curved |
| Minimum Radius for Curved Loads | 13″ [330 mm] |
| Maximum Elevation | 5000 ft [1500 m] |
| Material and Ambient Temperature-Range | 10°F [-12° C] up to 120° F [49° C] |
| Pad Diameter | 10″ [25 cm] |
| Pad Model | G0750 |
| Rubber Type | Standard |
| Handle Type | Metal |
| Plunger Type | Industrial-Grade Plastic |
