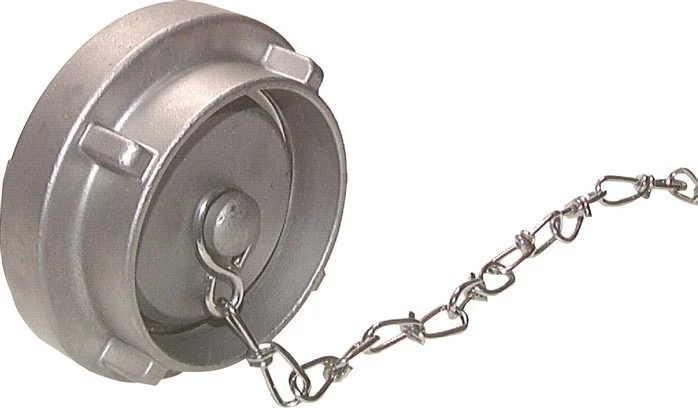

100 (115 mm) Forged Aluminum Cap for Storz Coupling

This is a 100 cap for a Storz coupling with a lug distance of 115 mm. It is made of forged aluminum with an NBR (nitrile rubber) seal. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).

Storz couplings are used in fire protection systems and industrial applications. Both parts of the Storz coupling have the same head structure, so couplings with the same lug distance can be buckled together.

Pros:

• Quick connection and release by twisting 120°
• All couplings with the same lug distance and nominal size are compatible with one another
• Aluminum couplings are lighter in weight than stainless steel

Specifications

Storz size : 100
Material : Forged aluminum
Seal material : NBR (nitrile rubber)
Lug distance : 115 mm
Operating pressure (bar) : 16
Max temperature (°C) : 110
Min temperature (°C) : -40
