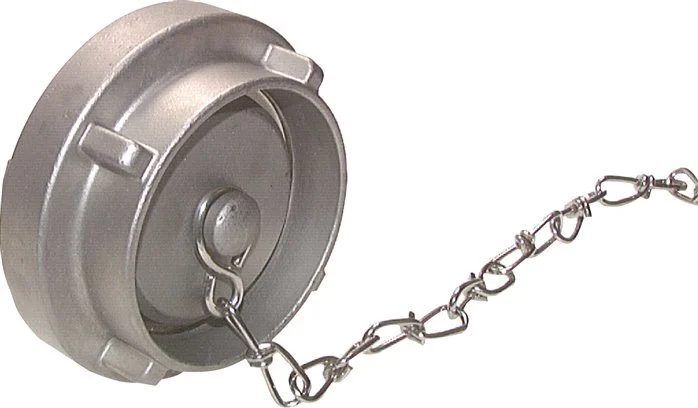

100 (115 mm) Stainless Steel Cap for Storz Coupling

This is a 100 cap for a Storz coupling with a lug distance of 115 mm. It is made of stainless steel with an FKM seal. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -15 to 200 °C (5 to 392 °F).

Storz couplings are used in fire protection systems and industrial applications. Both parts of the Storz coupling have the same head structure, so couplings with the same lug distance can be buckled together.

Pros:

• Quick connection and release by twisting 120°
• All couplings with the same lug distance and nominal size are compatible with one another
• Stainless steel couplings have excellent corrosion resistance

Specifications

Storz size : 100
Material : Stainless steel 1.4581
Metal-sealing : No
Seal material : FKM (FPM)
Lug distance : 115 mm
Operating pressure (bar) : 16
Max temperature (°C) : 200
Min temperature (°C) : -15
Suction coupling : No
