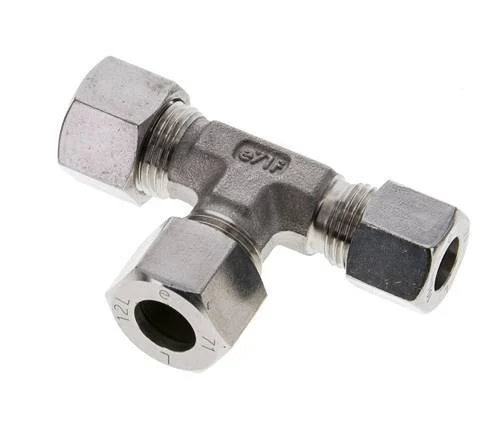

10L & 12L Stainless Steel Right Angle Tee Cutting Fitting 315 bar ISO 8434-1

This stainless steel 1.4571 Tee screw connection is designed with three cutting ring connections in a L-shape. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 3 is a 10 mm cutting ring. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Union nut thread : M16 x 1.5,M18 x 1.5
Cutting ring connection (mm) : 12
Cutting ring connection smaller (mm) : 10
Load class (DIN 2353) : L (light)
Connection type : Cutting ring
Material : Stainless steel
Fitting features : Reducing
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
