10L & 22L Stainless Steel T-Shape Tee Cutting Fitting 160 bar ISO 8434-1

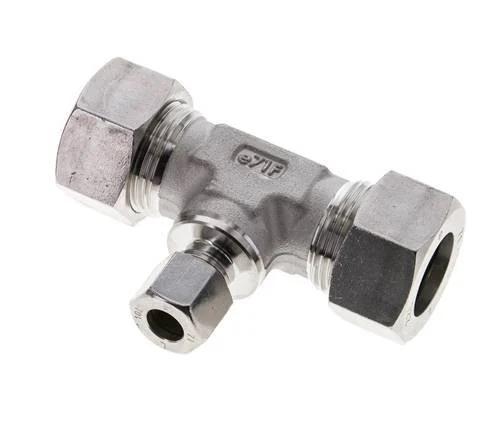

This stainless steel 1.4571 Tee screw connection is designed with three cutting ring connections in a T-shape. Connection 1 is a 22 mm cutting ring with a M30x2 union nut. Connection 2 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 3 is a 10 mm cutting ring. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Union nut thread : M16 x 1.5,M30 x 2
Cutting ring connection (mm) : 22
Cutting ring connection smaller (mm) : 10
Load class (DIN 2353) : L (light)
Connection type : Cutting ring
Material : Stainless steel
Fitting features : Reducing
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
