10L & R1/4” Nickel plated Brass Elbow Cutting Fitting with Male Threads 115 bar ISO 8434-1 [2 Pieces]

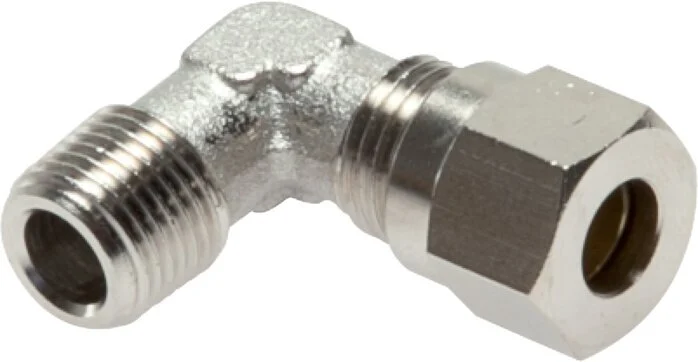

This nickel plated brass elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 has male R 1/4 inch threads. The maximum pressure is 115 bar (1668 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for neutral and non-corrosive media

Specifications

Thread : 1/4 inch
Union nut thread : M16 x 1.5
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 10
Connection type : Cutting ring,Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 115
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN ISO 8434-1 (DIN 2353)
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
Surface protection connection 1 : Nickel-plated
With drain : No
