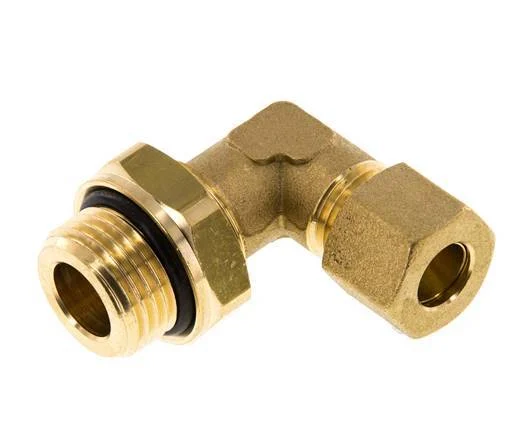

10mm & G1/2” Brass Elbow Compression Fitting with Male Threads 95 bar NBR Adjustable DIN EN 1254-2

This brass elbow screw in connection is designed with one male threaded connection and one compression ring connection port. It has an adjustable connection. Connection 1 is a 10 mm compression ring with a M16x1.5 union nut. Connection 2 has male G 1/2 inch threads. The seal material is NBR. The maximum pressure is 95 bar (1378 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN 1254-2.

Pros:

• Adheres to DIN EN 1254-2
• It has adjustable connection
• Suitable for neutral and non-corrosive media

Cons:

• The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)

Specifications

Thread : 1/2 inch
Compression ring connection (mm) : 10
Union nut thread : M16 x 1.5
Connection type : Compression ring,Outer thread cylindrical BSPP-G
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 95
Min temperature (°C) : -20
Max temperature (°C) : 80
Standard : DIN EN 1254-2
Fitting features : Adjustable
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
With drain : No
