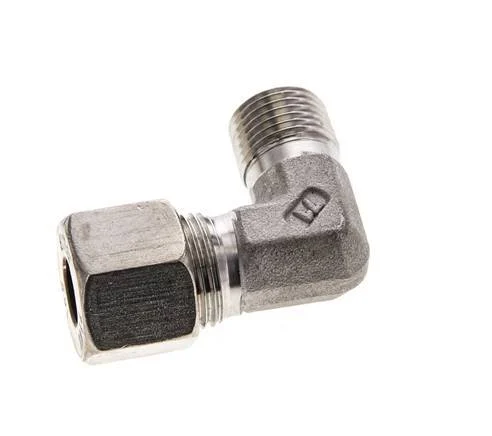

10S & M16x1.5 (con) Stainless Steel Elbow Compression Fitting with Male Threads 450 bar ISO 8434-1

This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 10 mm compression ring with a M18x1.5 union nut. Connection 2 has male M 16×1.5 (conical) threads. The maximum pressure is 450 bar (6525 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for use in gas and water area
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Cons:

• Since it has a compression ring connection, it can only be used once

Specifications

Thread : M16 x 1.5
Compression ring connection (mm) : 10
Union nut thread : M18 x 1.5
Load class (DIN 2353) : S (heavy)
Connection type : Compression ring,Outer thread metric (Conical)
Material : Stainless steel
Max pressure at 20 °C (bar) : 450
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Elbow
With drain : No
