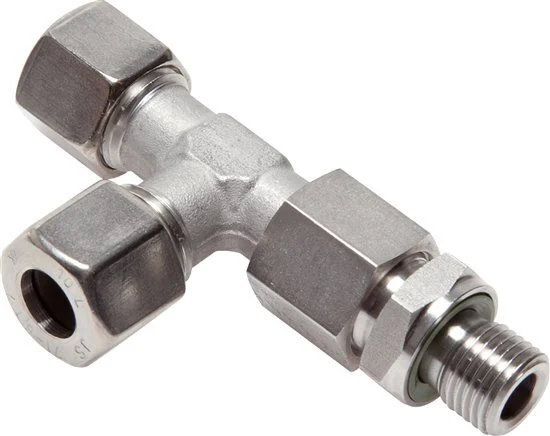

10S & M16x1.5 Stainless Steel Right Angle Tee Compression Fitting with Male Threads 450 bar Adjustable ISO 8434-1

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. It has an adjustable connection. Connection 1 is a 10 mm compression ring with a M18x1.5 union nut. Connection 2 is a 10 mm compression ring with a M18x1.5 union nut. Connection 3 has male M 16×1.5 threads. The maximum pressure is 450 bar (6525 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has adjustable connection
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Thread : M16 x 1.5
Compression ring connection (mm) : 10
Union nut thread : M18 x 1.5
Load class (DIN 2353) : S (heavy)
Connection type : Compression ring,Outer thread metric
Material : Stainless steel
Fitting features : Adjustable
Max pressure at 20 °C (bar) : 450
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : L-shape
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
