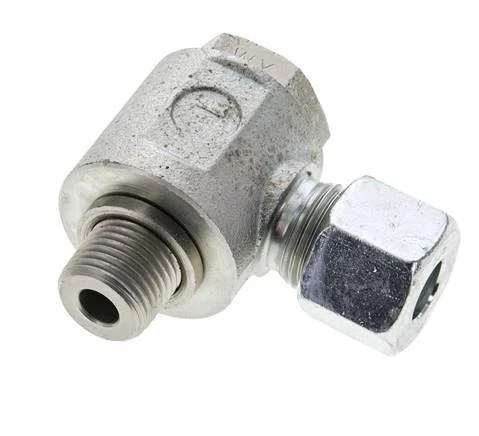

10S & M16x1.5 Zink plated Steel Swivel Joint Cutting Fitting with Male Threads 400 bar Rotatable ISO 8434-1

This zink plated steel elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 10 mm cutting ring with a M18x1.5 union nut. Connection 2 has male M 16×1.5 threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Thread connection is rotatable
• Suitable for hydraulic applications

Specifications

Thread : M16 x 1.5
Union nut thread : M18 x 1.5
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 10
Connection type : Cutting ring,Outer thread metric
Material : Steel
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
With drain : No
