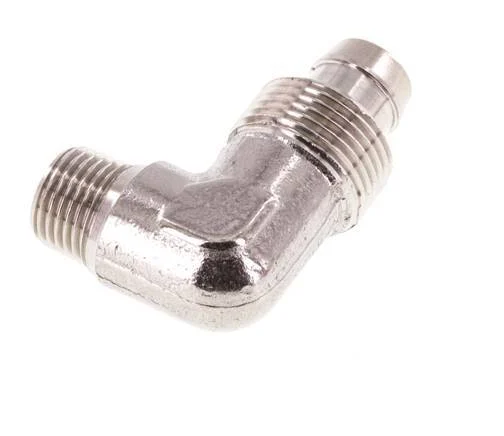

10×8 & R1/8” Stainless Steel 1.4404 Elbow Push-on Fitting with Male Threads

This stainless steel 1.4404 elbow push-on fitting is designed with one push-on connection and one male threaded connection. Connection 1 is a 10×8 mm push-on connection. Connection 2 has R 1/8 inch female threads. The operating pressure corresponds to the pipes used.

Note: 1 union nut are not included. The union nut thread is M 14 x 1.

Pros:

• Easy assembly and disassembly with the push-on connection design
• Stainless steel material has better chemical resistance than other common fitting materials like brass, aluminum, and plastic

Specifications

Thread : 1/8 inch
Push-on connection : 8×10 mm
Union nut thread : M14 x 1
Connection type : Outer thread conical BSPT-R,Push-on
Material : Stainless steel
Quality of material : Stainless steel (1.4404)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4404)
Material quality connection 2 : Stainless steel (1.4404)
Shape : Elbow
With drain : No
