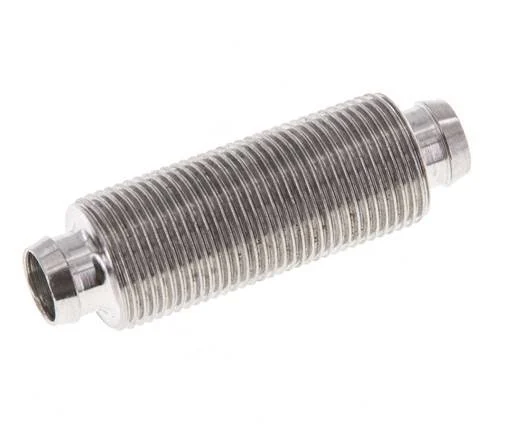

10×8 Stainless Steel 1.4571 Straight Push-on Fitting Bulkhead

This stainless steel 1.4571 straight push-on fitting is designed with two push-on connections. Connection 1 is a 10×8 mm push-on connection. Connection 2 is a 10×8 mm push-on connection. The operating pressure corresponds to the pipes used. It has a threaded bulkhead for the length of the fitting.

Note: 1 union nut are not included. The union nut thread is M 14×1.

Pros:

• Easy assembly and disassembly with the push-on connection design
• Stainless steel material has better chemical resistance than other common fitting materials like brass, aluminum, and plastic

Specifications

Push-on connection : 8×10 mm
Union nut thread : M14 x 1
Connection type : Push-on
Material : Stainless steel
Fitting features : Bulkhead
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
With drain : No
