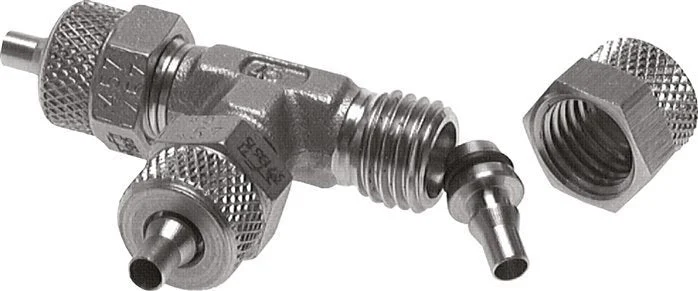

10×8 Stainless Steel 1.4571 Tee Push-on Fitting Multi-part

This stainless steel 1.4571 tee push-on fitting is designed with three push-on connections. Connection 1 is a 10×8 mm push-on connection. Connection 2 is a 10×8 mm push-on connection. Connection 3 is a 10×8 mm push-on connection. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 150 °C (-4 to 302 °F).

Pros:

• Easy assembly and disassembly with the push-on connection design
• It can be used for vacuum applications
• Stainless steel material has better chemical resistance than other common fitting materials like brass, aluminum, and plastic

Specifications

Push-on connection : 8×10 mm
Connection type : Push-on
Material : Stainless steel
Seal material : FKM (FPM)
Fitting features : Vacuum
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 20
Min temperature (°C) : -20
Max temperature (°C) : 150
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
