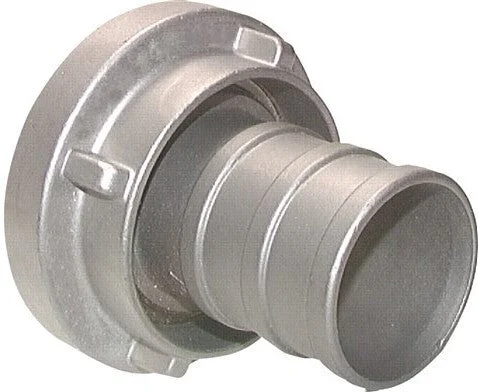

110-A (133 mm) Stainless Steel Storz Coupling 100 mm Hose Pillar Rotatable

This is a 110-A Storz coupling with a lug distance of 133 mm and 100 mm hose pillar connection. It is made of stainless steel with an FKM seal. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -15 to 200 °C (5 to 392 °F).

Storz couplings are used in fire protection systems and industrial applications. Both parts of the Storz coupling have the same head structure, so couplings with the same lug distance can be buckled together.

Pros:

• It is easy to connect a hose to the Storz coupling
• Quick connection and release by twisting 120°
• All couplings with the same lug distance and nominal size are compatible with one another
• Stainless steel couplings have excellent corrosion resistance
• It has a rotatable connection, which prevents any twisting of the attached hose

Cons:

• Storz couplings have no shut-off function

Specifications

Storz size : 110-A
Diameter, hose connector (mm) : 100
Material : Stainless steel 1.4581
Lug distance : 133 mm
Seal material : FKM (FPM)
Coupling features : Rotatable
Operating pressure (bar) : 16
Min temperature (°C) : -15
Max temperature (°C) : 200
Nominal bore of coupling : DN 100
