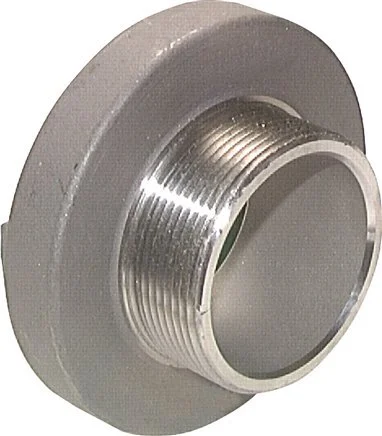

110-A (133 mm) Stainless Steel Storz Coupling G 4” Male Thread

This is a 110-A Storz coupling with a lug distance of 133 mm and G 4 inch male threads. It is made of stainless steel with an FKM seal. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -15 to 200 °C (5 to 392 °F).

Storz couplings are used in fire protection systems and industrial applications. Both parts of the Storz coupling have the same head structure, so couplings with the same lug distance can be buckled together.

Pros:

• Quick connection and release by twisting 120°
• All couplings with the same lug distance and nominal size are compatible with one another
• Stainless steel couplings have excellent corrosion resistance

Cons:

• Storz couplings have no shut-off function

Specifications

Storz size : 110-A
Size of threaded connection [inch] : 4 inch
Thread connection : Outer thread cylindrical BSPP-G
Lug distance : 133 mm
Material : Stainless steel 1.4581
Seal material : FKM (FPM)
Operating pressure (bar) : 16
Min temperature (°C) : -15
Max temperature (°C) : 200
Rotating storz head : No
Suction coupling : No
