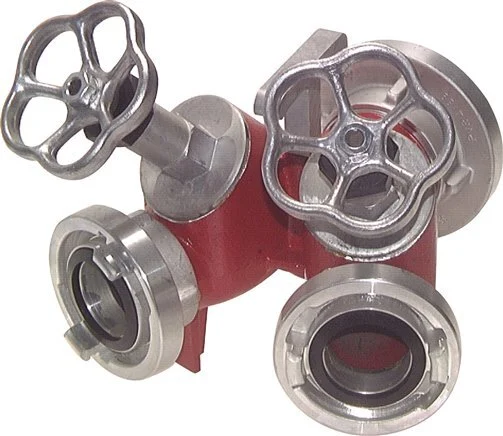

110-A and 75-B 2xStorz Distributor with Valves

This is a Storz distributor with an input 110-A Storz connection of (lug distance of 133 mm) and 2 output 75-B Storz (lug distance of 89 mm) connections. It has a shut-off valve for each output connection. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F). They are typically used for fire hydrant applications.

Pros:

• Equipped with 2 valves for shut-off control
• Quick connection and release by twisting 120 degrees

Specifications

Storz size : 110-A
Storz size (smaller) : 75-B (Storz)
Lug distance 1 : 133 mm
Lug distance 2 : 89 mm
Max temperature (°C) : 110
Min temperature (°C) : -40
Max pressure at 20 °C (bar) : 16
Number of Storz connections : 3
