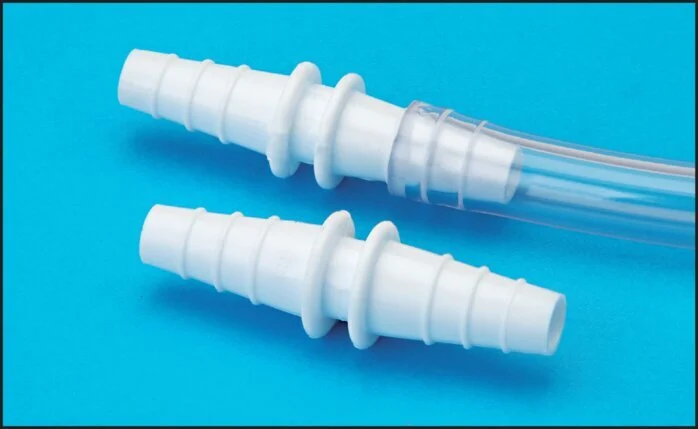

12 to 16 mm & 4 to 8 mm PP Hose Connector [2 Pieces]

This PP hose connector is designed with two hose pillars. Connection 1 is hose pillar with a conical shape from 4 to 8 mm and connection 2 is hose pillar with a conical shape from 12 to 16 mm. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from -10 to 120 °C (14 to 248 °F).

Specifications

Hose pillar connection : 12 – 16 mm
Hose pillar connection (smaller) : 4 – 8 mm
Connection type : Hose pillar
Material : Polypropylene (PP)
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -10
Max temperature (°C) : 120
Fitting features : Reducing
Material connection 1 : Polypropylene (PP)
Material connection 2 : Polypropylene (PP)
Shape : Straight
With drain : No
