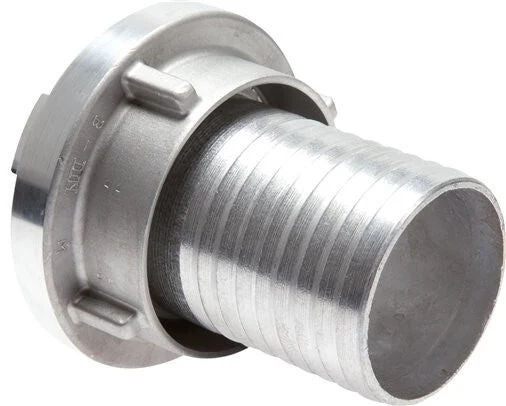

125 (148 mm) Forged Aluminum Storz Coupling 127 mm Hose Pillar Rotatable for a PVC hose

This is a 125 Storz coupling with a lug distance of 148 mm and 127 mm hose pillar connection. It is made of forged aluminum with an NBR (nitrile rubber) seal. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).

Storz couplings are used in fire protection systems and industrial applications. Both parts of the Storz coupling have the same head structure, so couplings with the same lug distance can be buckled together.

Pros:

• It is easy to connect a hose to the Storz coupling
• Quick connection and release by twisting 120°
• All couplings with the same lug distance and nominal size are compatible with one another
• Aluminum couplings are lighter in weight than stainless steel
• It has a rotatable connection, which prevents any twisting of the attached hose
• Suitable for a PVC or rubber hose
• Thanks to ribbed profile, suitable for sockets on hoses of greater wall thickness

Cons:

• Storz couplings have no shut-off function

Specifications

Storz size : 125
Diameter, hose connector (mm) : 127
Material : Forged aluminum
Lug distance : 148 mm
Seal material : NBR (nitrile rubber)
Coupling features : Rotatable,For PVC or rubber hose
Operating pressure (bar) : 16
Min temperature (°C) : -40
Max temperature (°C) : 110
Nominal bore of coupling : DN 127
