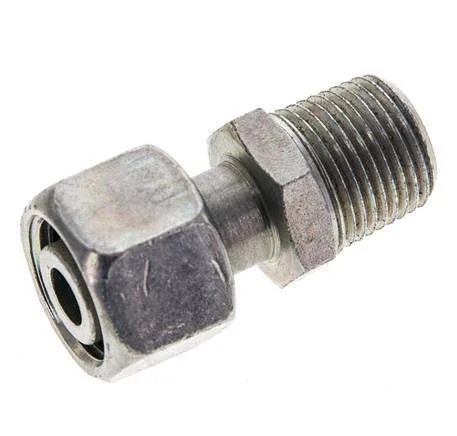

12L & 3/8” NPT Zink plated Steel Straight Swivel with Male Threads 315 bar Adjustable ISO 8434-1

This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 12 mm swivel tube connection. Connection 2 has male 3/8 inch NPT threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has adjustable connection
• Suitable for hydraulic applications

Specifications

Thread : 3/8 inch
Load class (DIN 2353) : L (light)
Swivel tube connection : 12 L
Connection type : Outer thread conical (NPT),Swivel tube connection
Material : Steel
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Adjustable
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
