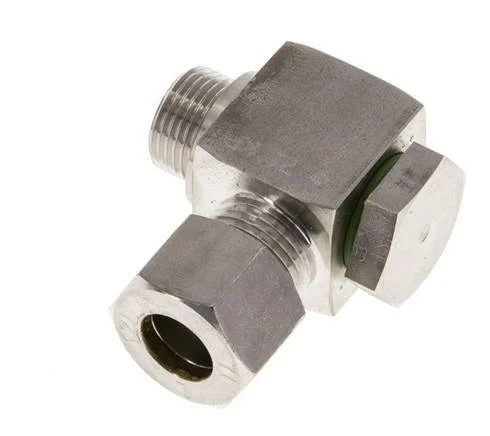

This stainless steel 1.4571 elbow swivel joint is designed with one male threaded connection and one compression ring connection port. The thread connection is rotatable. Connection 1 is a 12 mm compression ring with a M18x1.5 union nut. Connection 2 has male G 3/8 inch threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Thread connection is rotatable
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
Specifications
Thread : 3/8 inch
Compression ring connection (mm) : 12
Union nut thread : M18 x 1.5
Load class (DIN 2353) : L (light)
Connection type : Compression ring,Outer thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Elbow
With drain : No
