12L & M18x1.5 Zink plated Steel Elbow Ball-Guided Swivel Joint Cutting Fitting with Male Threads DN 10315 bar NBR ISO 8434-1

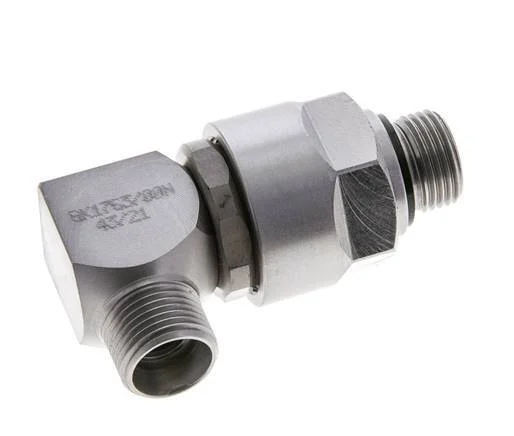

This zink plated steel elbow ball-guided screw connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 has male M 18×1.5 threads. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 10 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Thread : M18 x 1.5
Union nut thread : M18 x 1.5
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 12
Connection type : Cutting ring,Outer thread metric
Material : Steel
Seal material : NBR (nitrile rubber)
Nominal diameter (mm) : 10
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -20
Max temperature (°C) : 90
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Ball guided
Max. number of revolutions (Rpm) : 20
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
With drain : No
