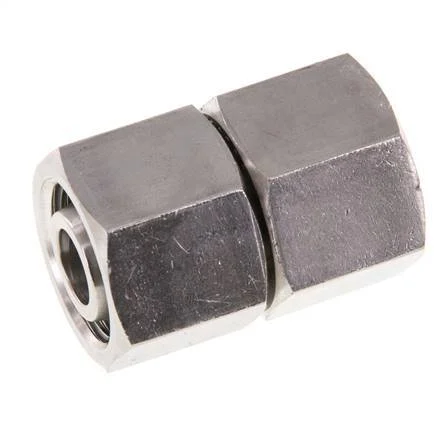

12L Stainless Steel Straight with Swivel 315 bar FKM O-ring Sealing Cone ISO 8434-1

This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. Connection 1 has a 12 mm swivel tube connection. Connection 2 has a 12 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• With O-ring and sealing cone
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Load class (DIN 2353) : L (light)
Swivel tube connection : 12 L
Connection type : Swivel tube connection
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : DIN EN ISO 8434-1 (DIN 2353)
Type of sealing : O-ring
Threaded end seal 1 : Sealing cone
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Straight
With drain : No
