12mm x G1/4” Plug-in Fitting with Male Threads Brass NBR [2 Pieces]

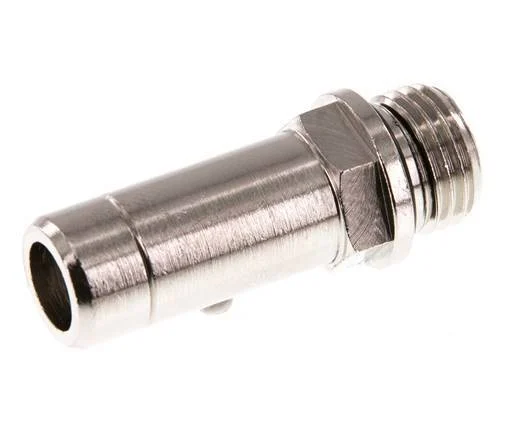

This is a plug-in fitting. It has connection ports to connect a push-in fitting to a hose, pipe or another pneumatic component. Connection 1 is a plug, also called a plug-in connection and connection 2 has G 1/4 inch male threads. The male thread connection has an O-ring seal. The body is made of brass. The connection ports are made of nickel plated brass. The seal material is NBR. The operating pressure range is -0.98 to 16 bar (-14 to 232 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F).

Pros:

• The male thread connection has an O-ring seal
• It can be used for vacuum applications
• This push-in fitting has an outer hexagon for mounting
• Suitable for pneumatics, compressed air distribution, and vacuum technology applications

Specifications

Thread : 1/4 inch
Plug-in connection : 12 mm
Connection type : Outer thread metric,Plug-in
Material : Brass
Seal material : NBR (nitrile rubber)
Min pressure (bar) : -0.98
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : -20
Max temperature (°C) : 80
Fitting features : Vacuum,Outer hexagon,With gasket
Type of sealing : O-ring
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
With drain : No
