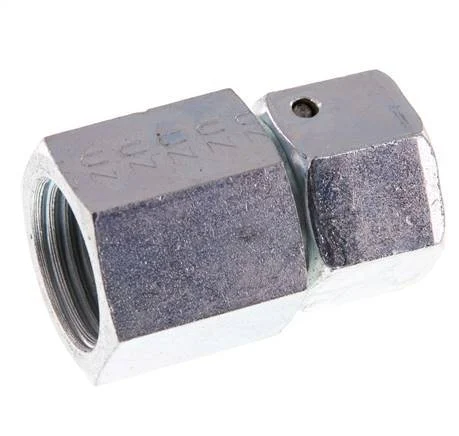

12S & G1/2” Zink plated Steel Straight Swivel with Female Threads for Pressure Gauges 630 bar NBR Sealing Cone ISO 8434-1

This zink plated steel straight screwed-on screw connection is designed with This fittings is designed to use with pressure gauge. Connection 1 has a 12 mm swivel tube connection. Connection 2 has female G 1/2 inch threads. It has a sealing cone for sealing. The seal material is NBR. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• With sealing cone for sealing
• Suitable for hydraulic applications

Specifications

Thread : 1/2 inch
Load class (DIN 2353) : S (heavy)
Swivel tube connection : 12 S
Connection type : Swivel tube connection,Inner thread cylindrical BSPP-G
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 630
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Type of sealing : Sealing cone
Threaded end seal 1 : Sealing cone
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
