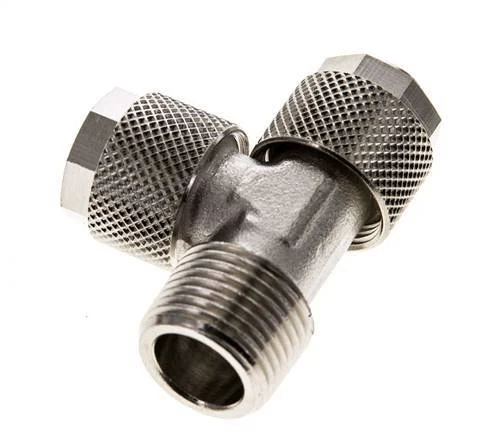

12×10 & R3/8” Nickel Plated Brass Right Angle Tee Push-on Fitting with Male Threads

This nickel plated brass right angle tee push-on fitting is designed with two push-on connections and with one male threaded connection. Connection 1 is a 12×10 mm push-on connection. Connection 2 is a 12×10 mm push-on connection. Connection 3 has R 3/8 inch male threads. The operating pressure corresponds to the pipes or hoses used.

Pros:

• Easy assembly and disassembly with the push-on connection design
• Suitable for neutral and non-corrosive media

Specifications

Thread : 3/8 inch
Push-on connection : 10×12 mm
Connection type : Push-on,Outer thread conical BSPT-R
Material : Brass
Model : T-piece
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Surface protection connection 3 : Nickel-plated
With drain : No
