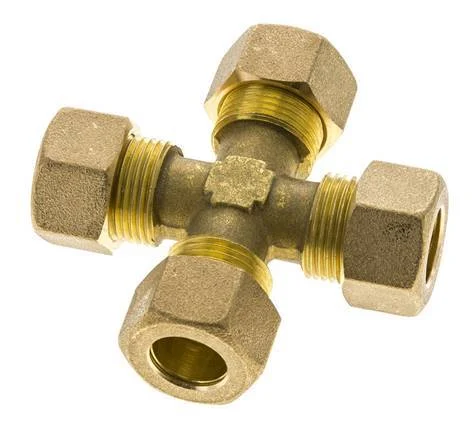

14mm Brass Cross Compression Fitting DIN EN 1254-2

This cross screw connection is designed with four compression ring connection ports in a cross shape. Connection 1 is a 14 mm compression ring. Connection 2 is a 14 mm compression ring. Connection 3 is a 14 mm compression ring. Connection 4 is a 14 mm compression ring. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). It is made in accordance with the DIN EN 1254-2.

Cons:

• Since it has a compression ring connection, it can only be used once

FL4X-C series

The FL4X-C series has 4 connection ports in the shape of a cross. It either has 4 compression ring connection ports or 4 cutting ring connection ports. Made out of brass, steel, or stainless steel, they have a max pressure up to 630 bar.

Specifications

Compression ring connection (mm) : 14
Material : Brass
Max pressure at 20 °C (bar) : 89
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : Cross piece 90°
