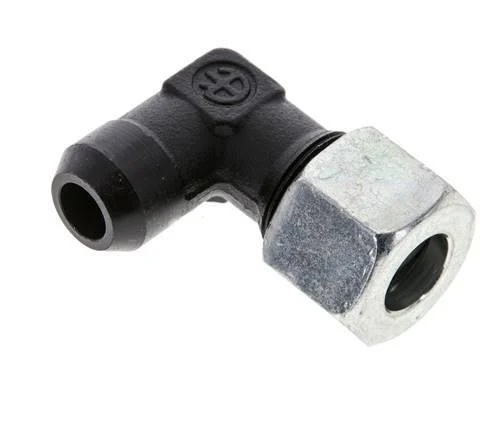

14S & 19mm Phosphatised Steel Elbow Cutting Fitting with Welding End 630 bar ISO 8434-1

This phosphatised steel elbow screw in connection is designed with cutting ring and welding connection ports. Connection 1 is a 14 mm cutting ring with a M22x1.5 union nut. Connection 2 has a 19 mm welding connection. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Union nut thread : M22 x 1.5
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 14
Welding connection (mm) : 19
Connection type : Cutting ring,Welding connection
Material : Steel
Max pressure at 20 °C (bar) : 630
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Phosphatised
With drain : No
