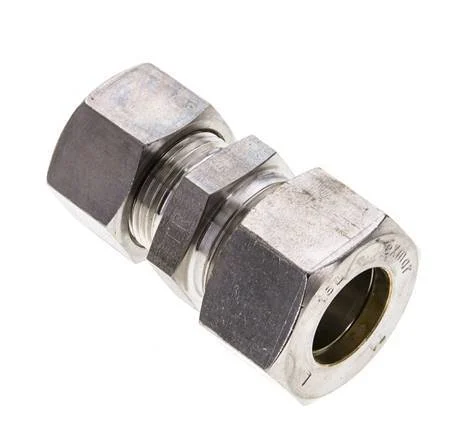

15L & 18L Stainless Steel Straight Compression Fitting 315 bar ISO 8434-1

This stainless steel 1.4571 straight screw connection is designed with two compression ring connection points. Connection 1 is a 18 mm compression ring with a M26x1.5 union nut. Connection 2 is a 15 mm compression ring with a M22x1.5 union nut. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for use in gas and water area
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Cons:

• Since it has a compression ring connection, it can only be used once

Specifications

Compression ring connection (mm) : 18
Compression ring connection smaller (mm) : 15
Union nut thread : M22 x 1.5,M26 x 1.5
Load class (DIN 2353) : L (light)
Connection type : Compression ring
Material : Stainless steel
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Straight
With drain : No
