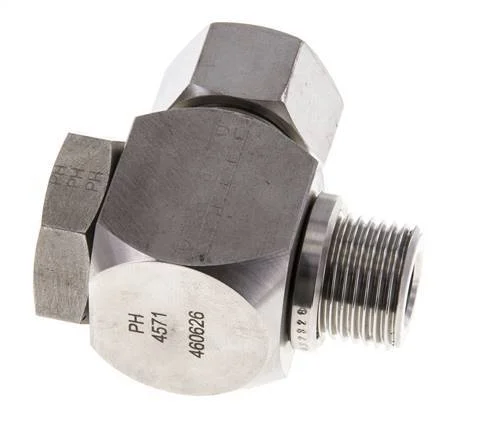

15L & G1/2” Stainless Steel Swivel Joint Cutting Fitting with Male Threads 315 bar Rotatable ISO 8434-1

This stainless steel 1.4571 elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 2 has male G 1/2 inch threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Thread connection is rotatable
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Thread : 1/2 inch
Union nut thread : M22 x 1.5
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 15
Connection type : Cutting ring,Outer thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Elbow
With drain : No
