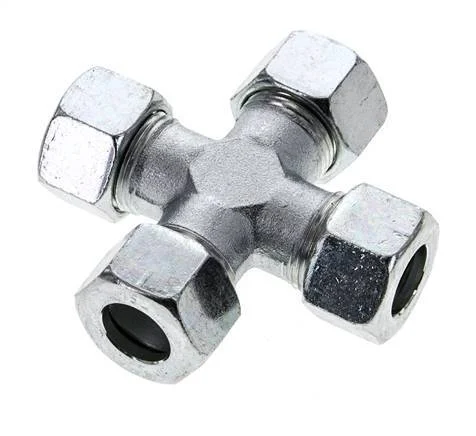

15L Zinc plated Steel Cross Cutting Ring 315 Bar DIN 2353

This cross screw connection is designed with four cutting ring connection ports in a cross shape. Connection 1 is a 15 mm cutting ring. Connection 2 is a 15 mm cutting ring. Connection 3 is a 15 mm cutting ring. Connection 4 is a 15 mm cutting ring. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

Cons:

• Since it has a cutting ring connection, it can only be used once

FL4X-C series

The FL4X-C series has 4 connection ports in the shape of a cross. It either has 4 compression ring connection ports or 4 cutting ring connection ports. Made out of brass, steel, or stainless steel, they have a max pressure up to 630 bar.

Specifications

Union nut thread : M22 x 1.5
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 15
Material : Steel
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Surface protection : Galvanic/electrolytic zinc plated
Model : Cross piece 90°
