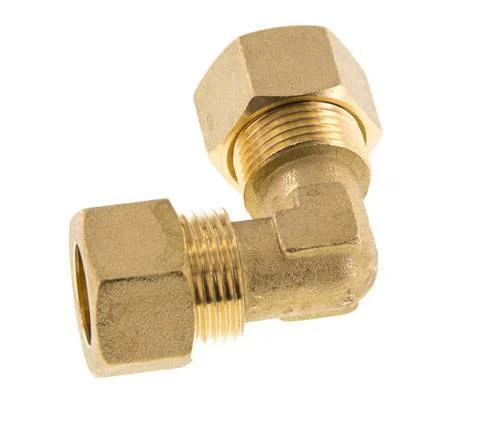

15mm Brass 90 deg Elbow Compression Fitting 82 Bar DIN EN 1254-2

This elbow screw connection is designed with cutting ring connections. Connection 1 is a 15 mm compression ring. Connection 2 is a 15 mm compression ring. It is an elbow fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 82 bar (1189 psi). The input and the output are at a 90° angle. It is made in accordance with the DIN EN 1254-2.

Cons:

• Since it has a compression ring connection, it can only be used once

FL2E-C series

The FL2E-C series are elbow fittings designed for either compression or cutting rings. They have 2 ports and a bend angle of 90 degrees. Made out of either brass, steel, or stainless steel they have a load class of L (light), LL (very light), or S (heavy).

Specifications

Compression ring connection (mm) : 15
Material : Brass
Max pressure at 20 °C (bar) : 82
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : 5-part
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
With drain : No
