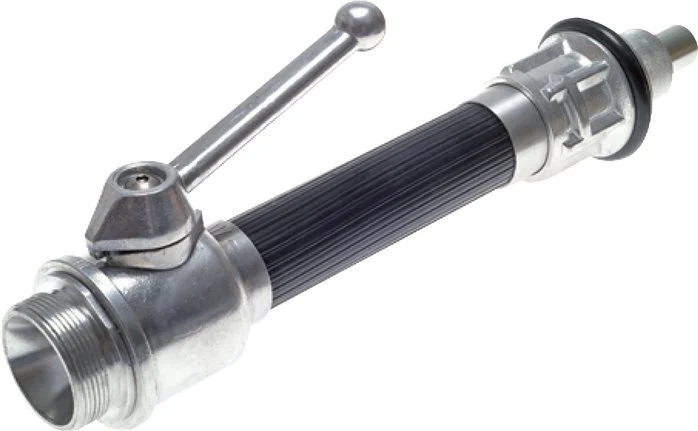

This is a jet pipe with a 16 mm nozzle and a G 2 1/2” male threaded connection port. It is made of forged aluminum & rubber. The maximum operating pressure is 16 bar (232 psi). It is suitable for temperatures between -40 to 110 °C (-40 to 230 °F).
Pros:
- Adheres to DIN 14365
- It comes with protective spray
Specifications
Connection size : 2 1/2 inch
Material : Forged aluminum/rubber
Jet pipe features : With protective spray
Max temperature (°C) : 110
Min temperature (°C) : -40
Max pressure at 20 °C (bar) : 16
Nozzle bore (mm) : 16
