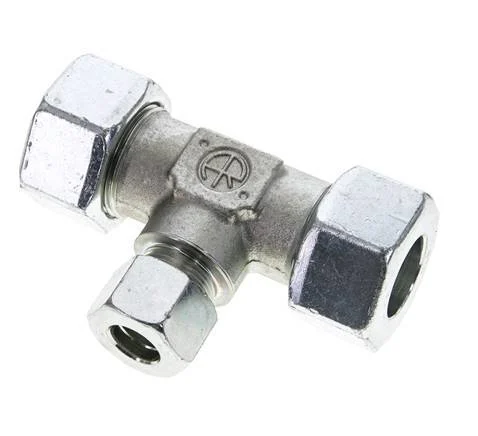

16S & 25S Zink plated Steel T-Shape Tee Cutting Fitting 400 bar ISO 8434-1

This zink plated steel Tee screw connection is designed with three cutting ring connections in a T-shape. Connection 1 is a 25 mm cutting ring with a M36x2 union nut. Connection 2 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 3 is a 16 mm cutting ring. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Union nut thread : M24 x 1.5,M36x2
Cutting ring connection (mm) : 25
Cutting ring connection smaller (mm) : 16
Load class (DIN 2353) : S (heavy)
Connection type : Cutting ring
Material : Steel
Fitting features : Reducing
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
With drain : No
