16S & M22x1.5 Zink Plated Steel Right Angle Tee Cutting Fitting with Male Threads 400 bar Adjustable ISO 8434-1

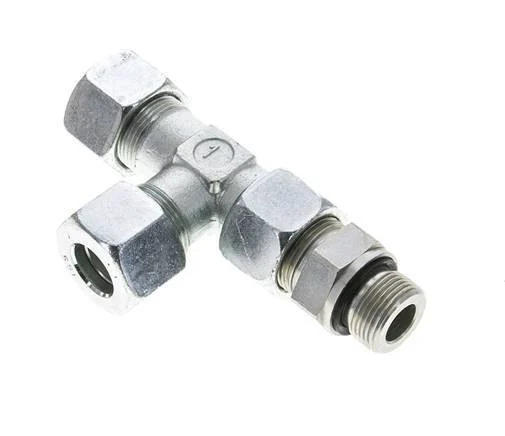

This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a L-shape. It has an adjustable connection. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 3 has male M 22×1.5 threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has adjustable connection
• Suitable for hydraulic applications

Specifications

Thread : M22 x 1.5
Union nut thread : M24 x 1.5
Cutting ring connection (mm) : 16
Load class (DIN 2353) : S (heavy)
Connection type : Cutting ring,Outer thread metric
Material : Steel
Fitting features : Adjustable
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : L-shape
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
With drain : No
