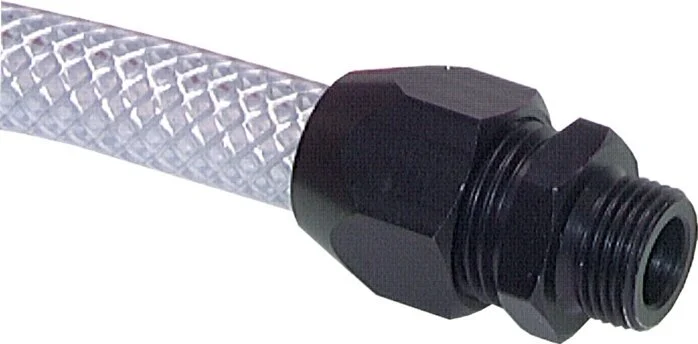

16x10mm & G3/8” Aluminum Straight Compression Fitting with Male Threads 10 bar PVC and PA [2 Pieces]

This aluminum straight screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 16×10 mm compression ring. Connection 2 has male G 3/8 inch threads. The seal material is PVC and PA. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -10 to 60 °C (14 to 140 °F).

Pros:

• Frequent assembly and disassembly possible
• No hose clip or projecting mesh wires of the metal braid

Cons:

• This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel

Specifications

Thread : 3/8 inch
Compression ring connection (mm) : 16
Hose inside x outside : 10×16 mm
Connection type : Compression ring,Outer thread cylindrical BSPP-G
Material : Aluminum
Seal material : PVC / PA
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -10
Max temperature (°C) : 60
Fitting features : Vacuum
Material connection 1 : Aluminum
Material connection 2 : Aluminum
Shape : Straight
With drain : No
