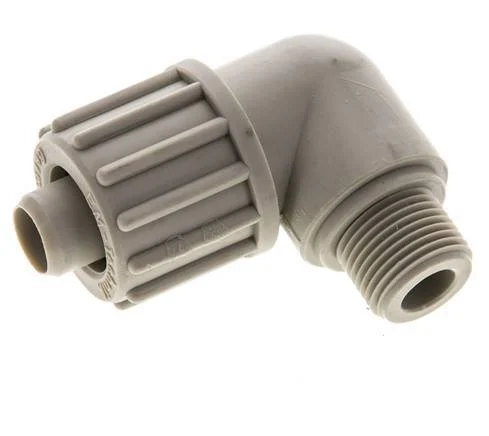

16x10mm & G3/8” PP Elbow Compression Fitting with Male Threads 10 bar PVC and PA

This pp elbow screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 16×10 mm compression ring. Connection 2 has male G 3/8 inch threads. The seal material is PVC and PA. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).

Pros:

• Frequent assembly and disassembly possible
• No hose clip or projecting mesh wires of the metal braid

Cons:

• This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel

Specifications

Thread : 3/8 inch
Compression ring connection (mm) : 16
Hose inside x outside : 10×16 mm
Connection type : Compression ring,Outer thread cylindrical BSPP-G
Material : Polypropylene (PP)
Seal material : PVC / PA
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : 5
Max temperature (°C) : 90
Fitting features : Vacuum
Bend angle (°) : 90
Material connection 1 : Polypropylene (PP)
Material connection 2 : Polypropylene (PP)
Shape : Elbow
With drain : No
