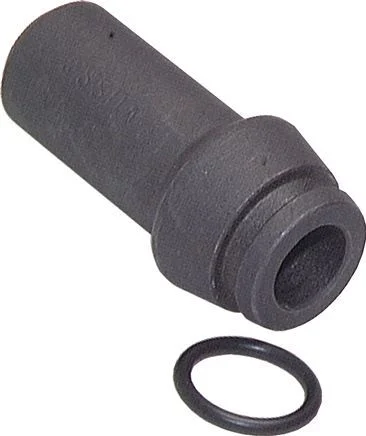

16x3mm Phosphatised Steel Straight with Welding End 400 barO-ring ISO 8434-1 [2 Pieces]

This phosphatised steel straight welding nipple is designed with connection for tube with outer diameter of 16 and wall thickness 3 mm. Connection 1 has a 16 mm welding connection. Connection 2. It has an o-ring for sealing. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• With O-ring for sealing
• Suitable for hydraulic applications

Specifications

Welding connection (mm) : 16
Connection type : Welding connection
Material : Steel
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Type of sealing : O-ring
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Phosphatised
With drain : No
